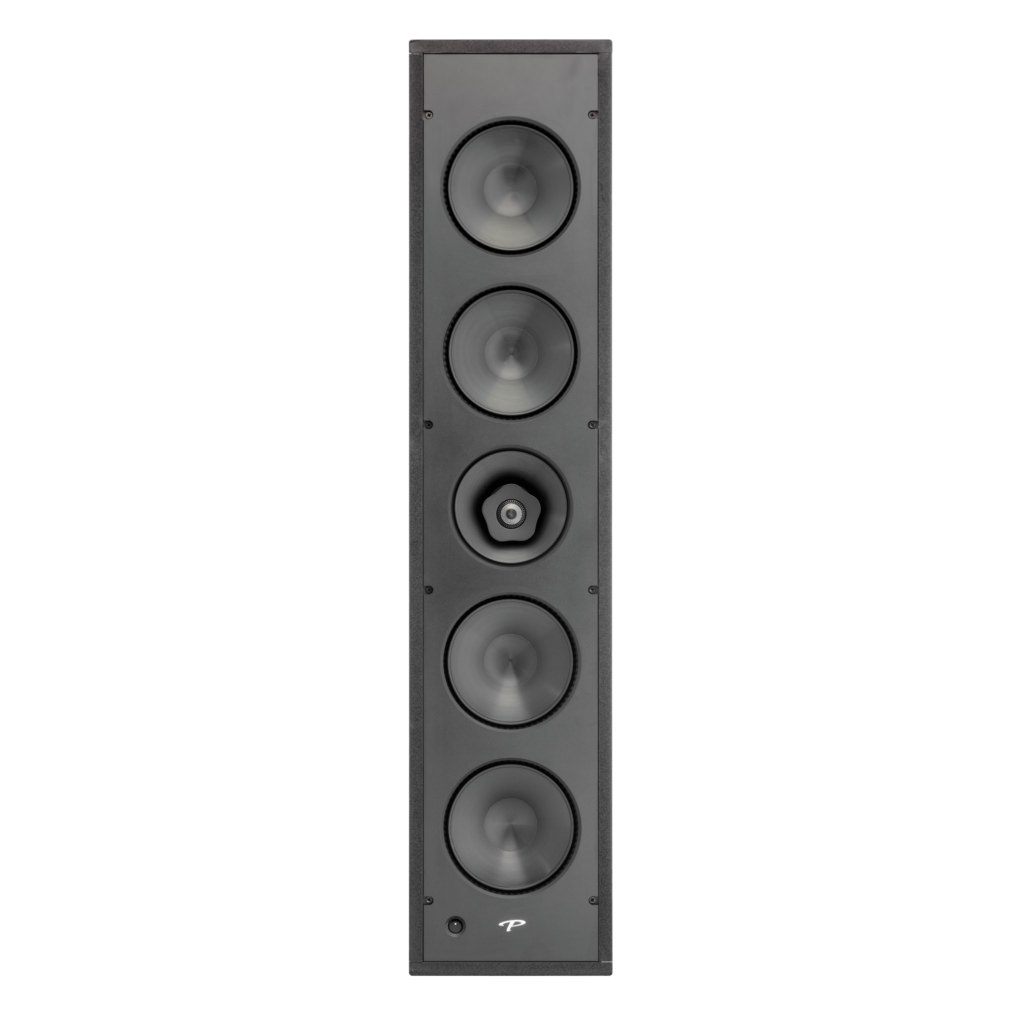

CI Elite E7-LCR
₪20,290.00
| Design | 4 driver, dual passive radiators, 3 way, shallow enclosure in-wall design |
| Crossover | 3rd order electro-acoustic at 3 kHz, 2nd order electro-acoustic @ 480 Hz |
| Frequency Response On-Axis | ±3 dB from 80 Hz – 22 kHz |
| Frequency Response 30° Off-Axis | ±3 dB from 80 Hz – 19 kHz |
| High Frequency Driver | 1″ (2.5cm) X-PAL™ dome, ferro-fluid damped / cooled, Reduced Edge Diffraction (RED™) Technology, Perforated Phase-Aligning (PPA™) Tweeter Lens |
| Midrange Frequency Driver | 6.5″ (16.5cm) coaxial X-PAL™ driver, die-cast aluminum chassis, 1.5″ (3.8cm) high-temp voice coil |
| Low Frequency Driver | Two 8″ (20.3cm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surround, die-cast aluminum chassis, 1.5″ (3.8cm) high-temp voice coil |
| Passive Radiators | Two 8″ (20.3cm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds |
| Low Frequency Extension | 55 Hz |
| Sensitivity Room / Anechoic | 95 dB / 92 dB |
| Impedance | Compatible with 8 ohms |
| Suitable Amplifier Power Range | 15-220 W |
| Maximum Input Power | 150 W |
| Finishes | White, paintable grille |
| Weight | 33.0 lbs. (14.9 kg) |
| Overall Dimensions | 43″ (109.2cm) Height 9.5″ (24.1cm) Width 4.125″ (10.5cm) Depth |
| Cut-Out Dimensions | 42″ (106.7cm) Height 8.5″ (21.6cm) Width |
| Minimum Mounting Depth Depth required is the distance between 1/2″ drywall, or similar material. | 3.875″ (9.8cm) |
